    25kHz VHF Walkie Talkie

    Ask Lasest Price
    Brand Name : JUVI
    Model Number : JV-VH06
    Certification : CCS, EC
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000+PCS+Month
    Delivery Time : 7 days
    MOQ : 1PC
    • Product Details
    • Company Profile

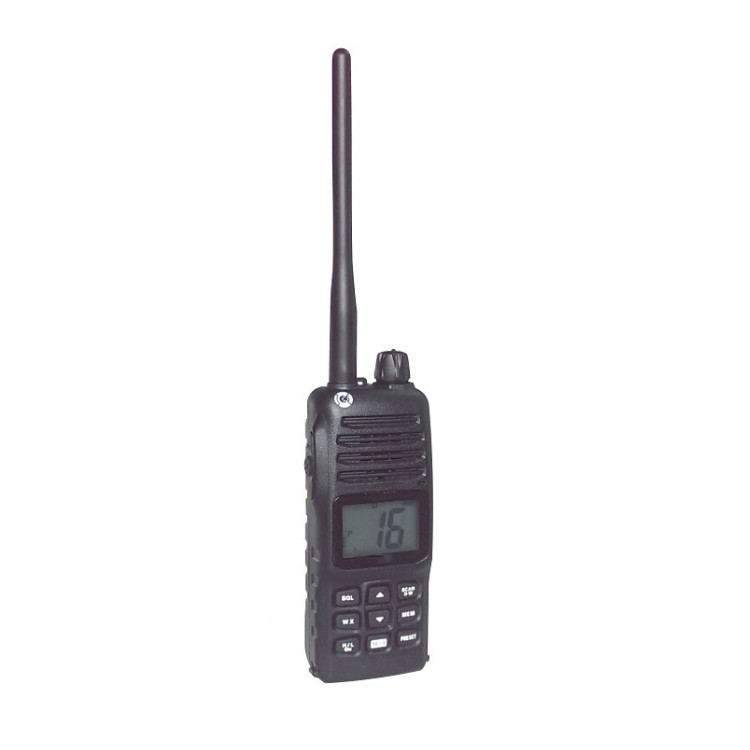

    25kHz VHF Walkie Talkie

    Marine GPS Navigation Systems Marine Ship Explosion Proof VHF Walkie Talkie


    Features of Marine Explosion Proof VHF Walkie Talkie


    Specifications Parameter
    TypeJV-VH06MHZ
    General
    Frequency range154-163
    Channe 1 spacing25kHz
    Number of channe 1 s98
    Operating temperature-20°C to +60°C
    Case Size) (WXHXD):56 x 133 x 27. 5 mm
    Weight335g
    BatteryCY-LB06 1800mAh
    Transmitter
    RF output power0. 5W (Lo)/1. 8W (Hi)
    Frequency error<+0. 5kHz
    Receiver
    Sensitivity0. 18u V for 12 dB S I NAD
    Adjacent channe 1 power>70 dB
    Blocking>90 dB
    Spurious response>60 dB
    Harmonic distortion<5%
    Intermodulation rejection>68 dB

    SPECIFICATION


    JV-VH06 Explosion-Proof VHF Radiotelephone were designed and made according to the requirement of explosion - hazardous
    Explosion-Proof VHF areas Part.
    1. Equipment -
    Part 1: General requirements ( GB3836. 1-2010) and explosionhazardous areas
    Part 4: Theequipment of secure type“1”protection ( GB 3836.4-2010), it is secure type explsion-proof VHF Radiotelephone, This producthas been tested and proved to be qualified for delivery in conformity with standard by CQST.
    JVVH-06 is speially designed for high-risk areas Ex ib IIC T4 GB,which is suitable for ships with liquefied
    gas vessel and other characteristics.


    JV-VH01 Two-Way VHF Radiotelephone is the GMDSS system importantcomponent and it is radio equipment that mainly used in communi-cation between people with risks and nearby rescue groups. Whenthe emergency encounters to be possible transmits the distress signal to other ships or the sea patrol leader in 16 channels.


    JV-VH02 meet the daily on the ship and the locale communication needs,can use all VHF simplex channel meet the international maritime mobileservice, product design in line with international maritime organizationand the relevant provisions of the state.
    Excellent waterproof function, in the depth of 1 m can keep watertight atleast 5 minutes; Corrosion resistant, adapt to bad environment on board,Easy to operate, most functions can complete one hand, High performance,high reliability, each ones are strict tested, to ensure that the performanceparameters and reliability is achieved.

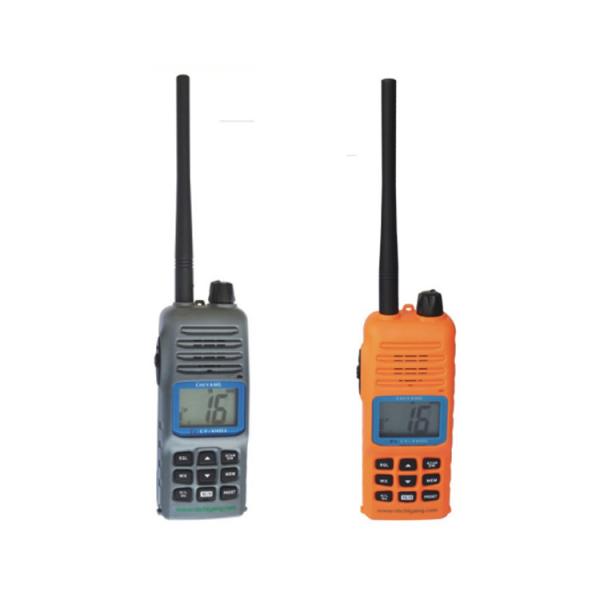

    25kHz VHF Walkie Talkie25kHz VHF Walkie Talkie


    Why Choose us?

    For 14years, We have been providing All Marine Products with Good Quality and Price for Shipyards/Ship Owners. In this way, help you to save money and time.

    1. Factory direct sale, we have our own factory to finish products.

    2. Team support, our R&D department and sales will provide satisfied services 24 hours.

    3. Advanced equipment, more kinds of products can be manufactured in our factory.

    4. Custom services, we could make the products as your required or drawings.

    5. One-stop purchase, all related products can be purchased from us.

    6. Trade assurance, more safeguards could be available between us.
